RHS

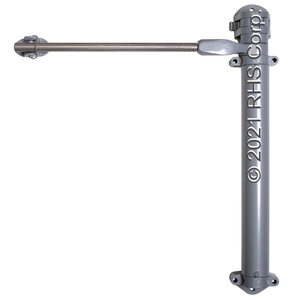

DOOR CLOSER, 25" ASSEMBLY
| LIST PRICE | $ 1551.04 | ||
| YOUR PRICE | $ 1551.04 | ADD TO CART | |
RHS Part #: 08-121
| IN STOCK: | CA | YES |
| CO | YES |
PRODUCT INFORMATION
RHS NOTES
LIMITED TO STOCK ON HAND. DISCONTINUED ITEM. SEE P/N 18-255 FOR AN ALTERNATIVE REPLACEMENT.
THIS IS CLOSER WORKS ON DOORS FROM FLUSH TO A 7/8" OFFSET BUT CAN BE SHIMMED FOR HIGHER OFFSETS
FINISH IS POWDER COATED GRAY, NOT ZINC.
COMMONLY USED ON DOORS LARGER THAN 3' WIDE AND 7' HIGH UP TO 800LB.
**********************************************************************************
VOID WARRANTY DISCLAIMER!
NOTE TYPICALLY THE SPRING IS OVER-TENSIONED AND SNAPS.
WARRANTY RESTRICTIONS APPLY!
ALL CLOSERS SHIP WITH WARNING LABELS CAUTIONING AGAINST OVER TENSION ON INSTALLATION. CONTACT A SERVICE REPRESENTATIVE
**********************************************************************************
SPRING TENSION INSTRUCTIONS:
WHEN MOUNTED ON RIGHT HINGED DOORS THE CLOSER IS APPLIED WITH THE ARM TOWARDS THE TOP OF THE CLOSER.
WHEN MOUNTED ON LEFT HINGED DOORS THE CLOSER IS APPLIED WITH THE ARM TOWARDS THE BOTTOM OF THE CLOSER.
DOOR CLOSER IS EQUIPPED WITH A 90/80 DEGREE, AND 180 DEGREE HOLD OPEN FEATURE.
OPEN DOOR TO THE DESIRED POSITION WHILE INSERTING THE PAWL IN RATCHET COLLAR CLOSER.
THIS REMOVES SPRING POWER TENSION FROM CASING.
TO CLOSE, OPEN THE DOOR ENOUGH TO UNTENSION THE PAWL.
THE CLOSER WILL THEN AUTOMATICLY RELEASE THE PAWL AND THE CLOSER WILL CLOSE THE DOOR.
WHEN USED AT 180 DEGREES THE PAWL MAY NEED TO BE RELEASED BY HAND.
EXTREME CAUTION SHOULD BE USED IN THIS INSTANCE TO PREVENT ANY ACCIDENTS.
DOOR CLOSER IS DESIGNED TO BE USED WITH BOTH STRAP AND CAM-LIFT STYLE HINGES.
